ARC Resources – Vapor Recovery Unit

Overview

NEXT Compression – then operating under the legacy title, SAGE Energy – was retained to design and fabricate a 2 stage rotary vane compressor package for ARC Resources vapor recovery application.

Design Considerations

• Compact package design meant piping had limited margin for error
• Alignment of 2 direct drive compressor horizontally mounted on a vessel became challenging, as moving one piece in a line shift the entire system

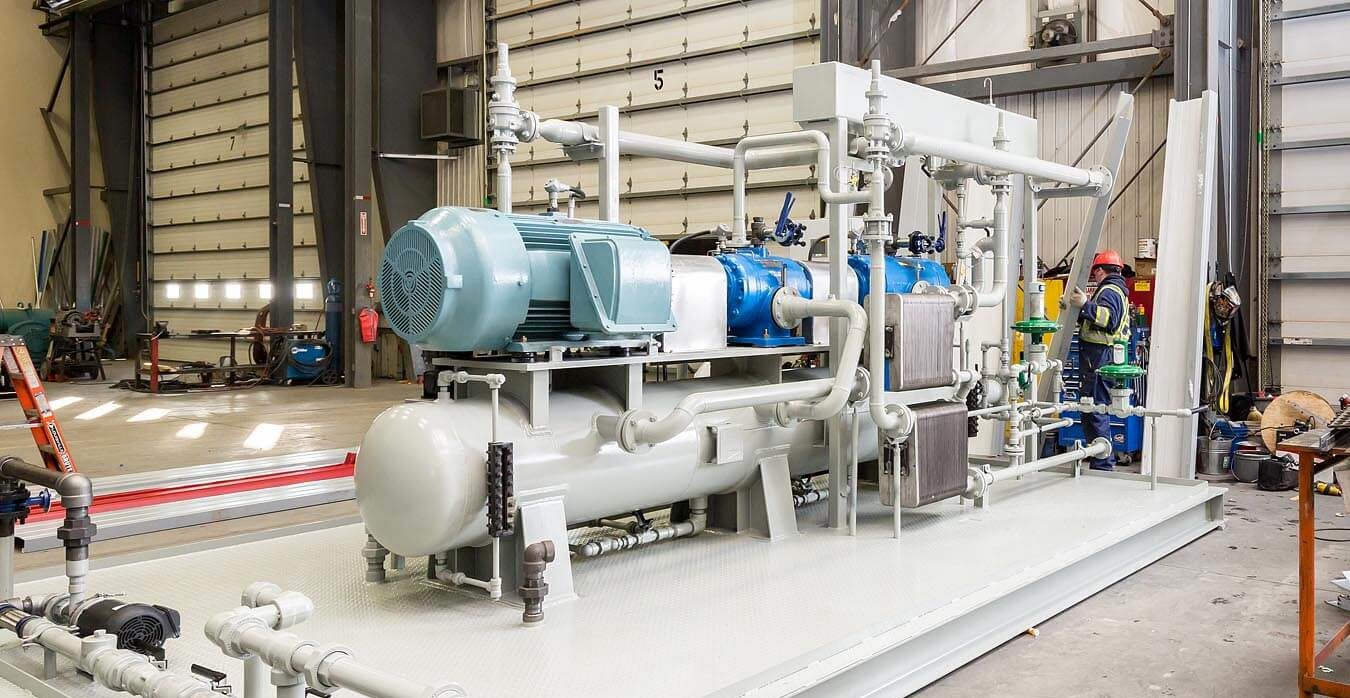

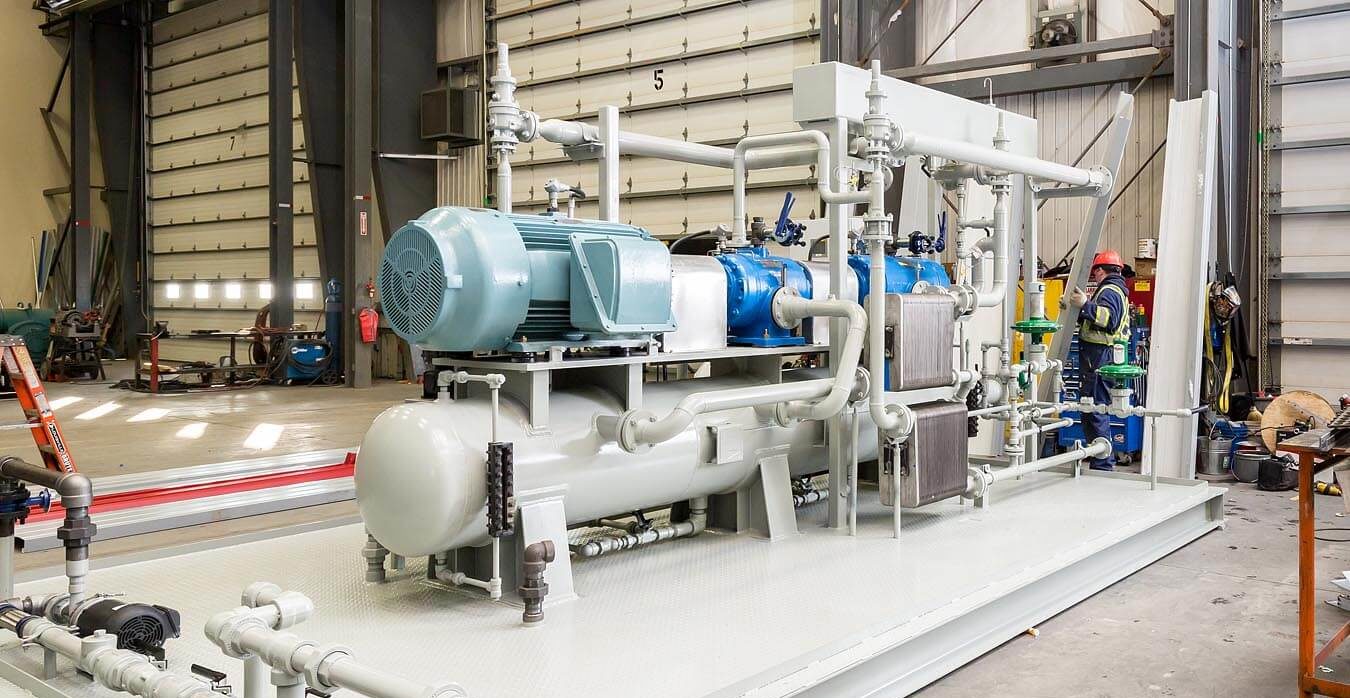

Final Product

We employed a single external horizontal scrubber, with a partition allowing it to act as two separate pressure vessels internally. This made for a clean, compact design that we were extremely pleased with.
